MY7122
2A/100mΩ Dual-Channel Switch with Ghost-Cancellation
General Description
The MY7122 is a dual-channel high side power switch with ghost-cancellation function designed for scanning LED display. The built-in discharge circuit eliminates the ghosting image and reduces “worm phenomenon” (*1) caused by LED short circuit or leakage. The internal on-resistance of power switch is 100mΩ.
The MY7122 is available in a SOP8 package.
(*1) Worm phenomenon: In the dynamic display, when a LED short circuit or leakage occurs, the off-LEDs on the same cathode will be lighted up.
Applications
- Indoor and Outdoor LED Display
- Dynamic LED Display

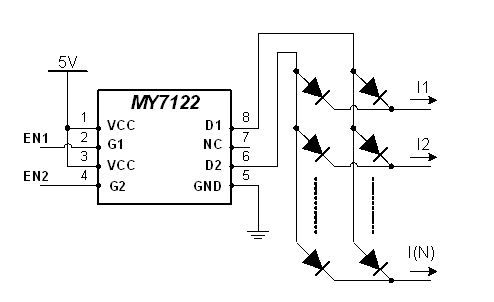

Typical Operating Circuits
Features
- Ghost cancellation function
- Reduce worm phenomenon caused by LED short circuit or leakage
- Output current up to 2A
- 100mΩ switch-on resistance
- MY7122SC using MSOP8 pacakge
Order Information
| PART |
PACKAGE INFORMATION |
| MY7122SC |
SOP8 |
2500 pcs/Reel |
|
|
|

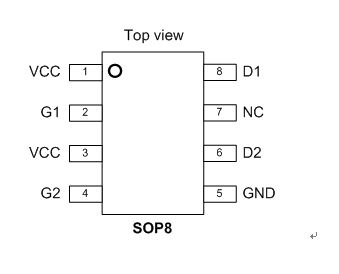

Pin Configuration
